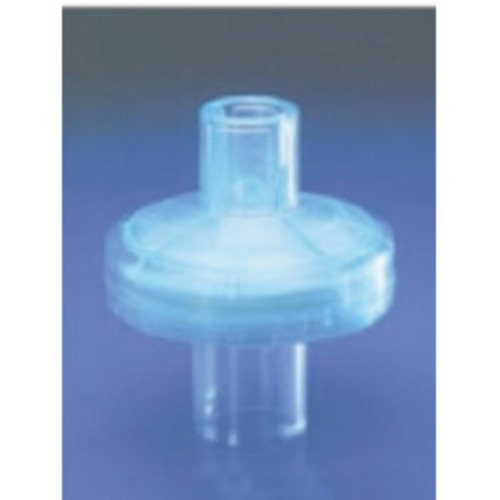

Smiths Medical Filtered Heat and Moisture Exchanger Thermovent® 23 mg at 34° C for 500 mL Tidal Volume, 18 mg at 34 degree C for 1000 mL Tidal Volume 1.0 hPa at 0.5 L per Second, 2.5 hPa at 1.0 L per Second, 4.0 hPa at 1.5 L per Second, 40 EA/CS

Filtered Heat and Moisture Exchanger Thermovent® 23 mg at 34° C for 500 mL Tidal Volume, 18 mg at 34 degree C for 1000 mL Tidal Volume 1.0 hPa at 0.5 L per Second, 2.5 hPa at 1.0 L per Second, 4.0 hPa at 1.5 L per Second, 40 EA/CS

This filtered heat and moisture exchanger helps provide passive humidification and filtration between the patient and breathing circuit. It is intended for anesthesia or ICU use when buyers need a Thermovent HME with filter and standard respiratory connections. Key selection details include 15 mm patient-end sizing, 44 mL dead space, and moisture output of 23 mg at 34 degree C for 500 mL tidal volume and 18 mg at 34 degree C for 1000 mL tidal volume.

Good Fit For

• Anesthesia breathing circuits
• ICU respiratory circuits
• Setups that require passive humidification with filtration
• Buyers matching 15 mm and 22 mm respiratory connections

Key Features

• Filtered heat and moisture exchanger for passive humidification with filtration between patient and circuit
• Suitable for anesthesia or ICU use
• Connection ports: 15 mm I.D. x 22 mm O.D. on patient end and 22 mm I.D. on circuit end
• Moisture output: 23 mg at 34 degree C for 500 mL tidal volume and 18 mg at 34 degree C for 1000 mL tidal volume
• Resistance values: 1.0 hPa at 0.5 L per second, 2.5 hPa at 1.0 L per second, and 4.0 hPa at 1.5 L per second
• Open-cell foam with electrostatically charged polypropylene media

Applications and Usage

• Placing between the patient and circuit in anesthesia applications
• Using in ICU respiratory setups that call for a filtered HME
• Supporting passive humidification while adding filtration in the breathing circuit

Packaging and Handling

• Packaging: CS.
• Size: 15 mm.
• Material: Foam.
• Sterility: Nonsterile.
• Check the connection sizes on both patient and circuit ends before ordering.
• Dead space is 44 mL, which may matter when selecting for specific ventilation setups.
• This product is nonsterile.

FAQ

• Can this heat and moisture exchanger be used in anesthesia or ICU settings? Yes. This Thermovent filtered heat and moisture exchanger can be used in anesthesia or ICU applications.
• Does this HME include filtration? Yes. This is a filtered heat and moisture exchanger for passive humidification with filtration between the patient and circuit.
• What connection sizes does this exchanger use? The patient end has 15 mm I.D. x 22 mm O.D. connections, and the circuit end has a 22 mm I.D. connection.
• What is the dead space for this unit? Dead space is 44 mL.
• What moisture output does this model provide? Moisture output is 23 mg at 34 degree C for 500 mL tidal volume and 18 mg at 34 degree C for 1000 mL tidal volume.

From Thermovent by Smiths Medical.
